RECTIFICATION

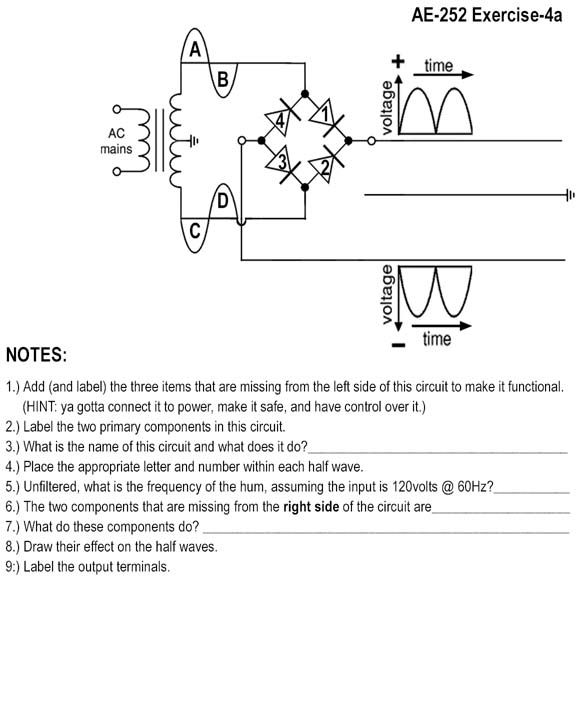

Download, print and complete the exercises below...



The keys are as follows: SE = Single ended, only one power supply voltage is generated. BP = Bipolar (not the disorder), it means two voltages of opposite polarities are generated. HW = half wave, only one camel hump FW = Full Wave, two camel humps WTF = you know this one BR = bridge rectifier VD = not what you think, but would you believe Voltage Doubler?	This  should be  self  explanatory
